Tensegrity Table

A tensegrity table functions through a deliberate separation of compression and tension elements rather than through continuous load paths typical of conventional furniture.

The Concept

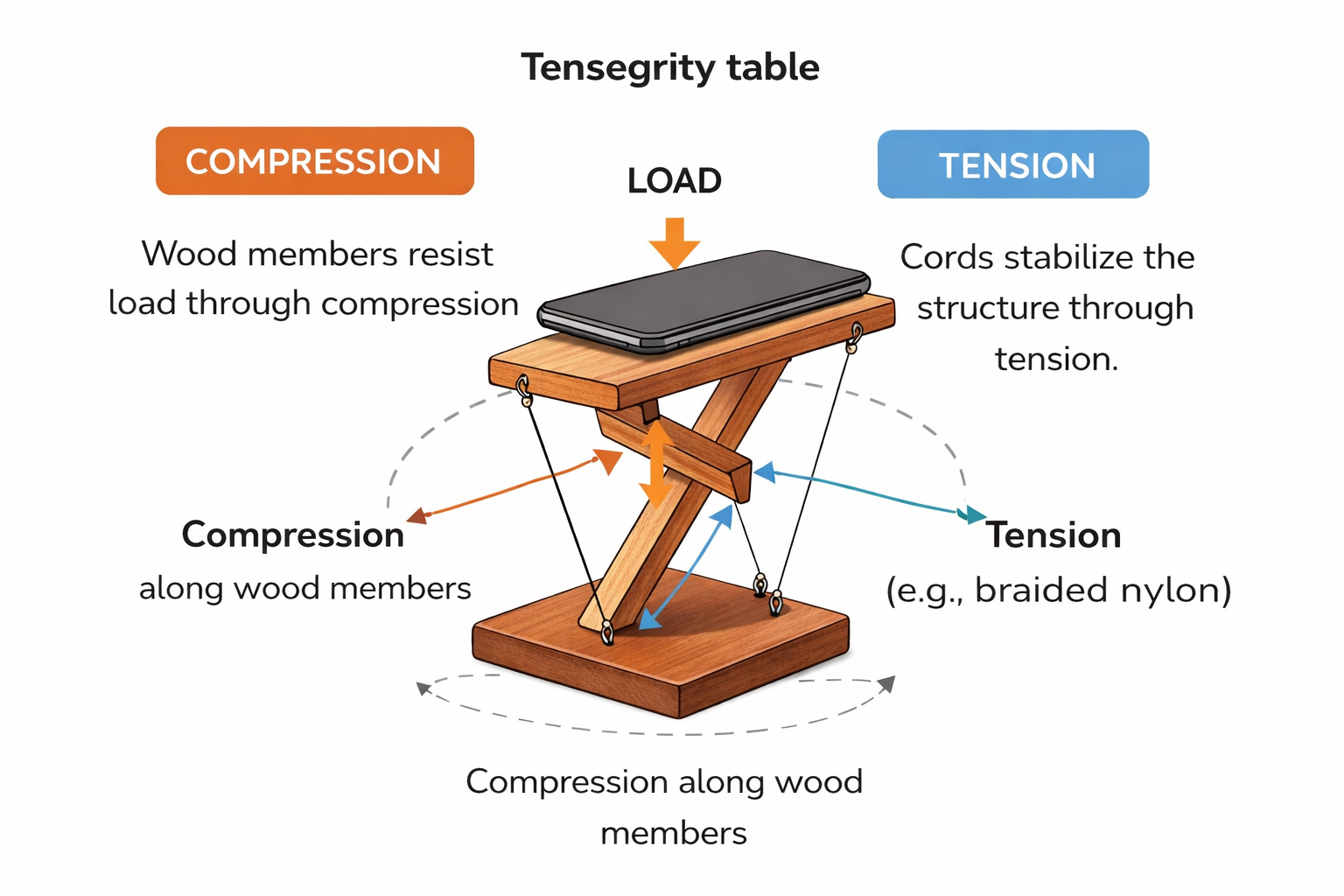

A tensegrity table achieves its striking “floating” appearance by balancing compression and tension. The wooden pieces act as rigid compression elements, while the cords—commonly braided nylon or Dyneema that serve as tension members.

Instead of supporting the top directly from below, the table relies on these cords to maintain its shape and stability. When a lightweight object, like a phone, is placed on the surface, the load is distributed through the compressed wooden elements and countered by the tension in the cords, keeping the top elevated and steady.

Behind the scenes

Building a tensegrity table starts with careful selection of materials. The wood must be stiff enough to resist bending under light loads, and the cords need low stretch to preserve the geometry over time. Eyelets or small hooks are often used to guide the cords and anchor them securely.

Construction requires precise measurement and tensioning: each cord must be tightened just enough to hold the compression elements in position without deforming them. Once assembled, the table’s stability comes from the continuous interplay of these opposing forces.

While the design may look delicate, the combination of rigid wood and taut cord creates a surprisingly robust structure that can support small everyday objects reliably. The main Issue for me here is probably the curing time of Wood Glue (i just want to finish this directly! loll)

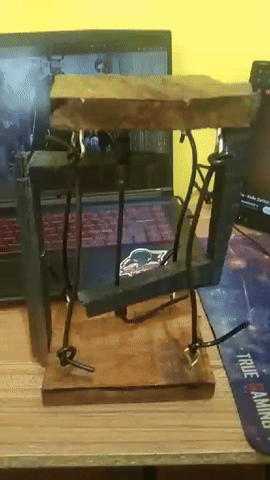

What I did is i recycled my jumping rope as i inspected it has the same quality as nylon but better! (on this particular jumping rope; it has twice the cross sectiona area and i double strand it so that the stress distributed is halved therefore a total of 4 support area on each end) i also apply noose knot so that it wont break lose.
